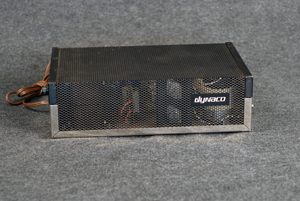

MFG: Dynaco
Model: ST-80
Grade: 7/10
Price: $135
Description:
Rated Power Output:
30 watts average continuous power per channel into 8 ohms, 20-20,000 Hz at less than 0.5% total harmonic distortion. Distortion reduces at lower power levels.
Power at Clipping, Single Channel, 1000 Hz, less than 1% distortion:
50 watts @ 8 ohms, 36 watts @ 4 ohms, 26 watts @ 16 ohms.
Intermodulation Distortion:
Less than 0.5% at any power level up to 40 watts rms per channel into 8 ohms with any combination of test frequencies. Distortion reduces at lower power levels.
Half-Power Bandwidth:
20 watts per channel at less than 0.5% total harmonic distortion from 8 Hz to 50 KHz into 8 ohms.
Frequency Response:
±0.5 dB, 10 Hz to 50 KHz @ 1 watt into 8 ohms.
Noise:
More than 90 dB below 40 watts output, full spectrum.
Channel Separation:
Greater than 60 dB from 20 Hz to 20 KHz.
(Courtesy of www.home.indy.net) |
